EasyRunner Secure Network Architecture

Every aspect of EasyRunner is designed with security in mind. While it's impossible for anybody to guarantee of being 100% secure, making security a first class design requirement goes a long way to significantly reducing the risk. A web host server has multiple vectors that needs to be secured. Here's how networking of a host server get's configured with network security in mind.

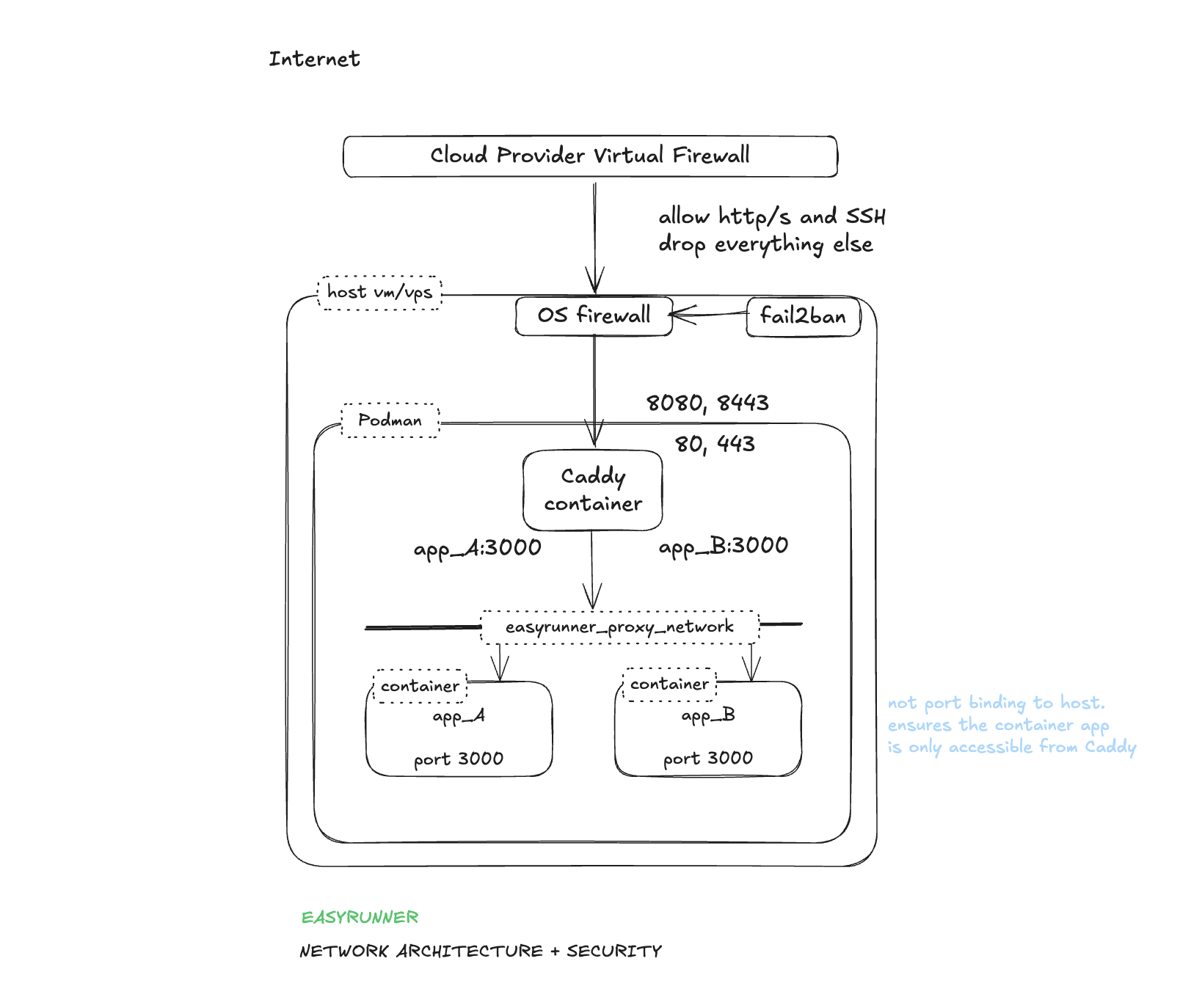

EasyRunner Network Architecture Diagram

The goal with the network setup is to reduce the surface area to a minimum. We explicitly only allow what's needed. Drop everything else by default. We generally follow the defense in depth principle.

OS Firewall

  • Implemented using IPTables.
  • Default drop all policy
  • Explicit allow 80, 443, 22
  • 80 and 443 port redirects to reverse proxy that listing on 8080 and 8443.
  • Only allow established connections to 8080 and 8443 i.e. externally port forward traffic. Local traffic is blocked.
  • Port 2019 traffic restricted to just localhost. Explicit block rule for external traffic (defense in depth)

Caddy Reverse Proxy

  • Runs in a container in the context of it's own OS user account
  • Bind to all host network interfaces on ports 8080, 8443 (maintain high ports only binding in rootless mode)
  • Bind to host localhost on port 2019 (Caddy Admin API)
  • Configured to always redirect HTTP -> HTTPS (ensures HTTPS always)
  • TLS certificated are automatically setup for every application with certs issued by Let's Encrypt.
  • Minimise information leaking that can be used by bad actors to identify vulnerable system. For example: remove X-Powered header.

Intrusion Prevention

Introduced in v0.14.b1 - Nov 2025

EasyRunner Fail2Ban integration

  • Implemented using Fail2Ban — a popular OSS intrusion prevention system (https://github.com/fail2ban/fail2ban) that monitors log files and bans IPs showing malicious behaviour.
  • Runs on the server with no external dependency.
  • Basic policy for SSH failed connection attempt jail. More OOTB policies will be added.
  • IPs with 5 failed SSH connection attempts within 10mins get's banned for 1hr. 3 fails within 1 day gets a 7 day ban.
  • Fail2Ban enforces bans by adding block rules to the OS Firewall.
  • Management commands integrated into EasyRunner for convenience. Custom policy management commands will be added in the future.

App Containers

  • Containers in each app stack run in the context of a dedicated OS user account. One per stack.
  • Containers do NOT bind to host ports. Therefore only accessible on the proxy network.
